PabloM Series
PabloM S10s
Through time-staggered and salvo strikes, PABLO AIR’s swarm capabilities can
neutralize enemy defense systems and maximize target suppression effectiveness.
Product View
Product View
Product Features
Product Features
-
Maximized Combat Effectiveness through Swarm OperationsPabloM S10s effectively eliminates targets and neutralizes advanced defense systems through salvo or time-staggered attacks coming from multiple angles.
-
Rapidly Swappable Modular Mission PayloadsDeveloped under the K-MOSA (Korean Modular Open Systems Approach) framework, modular payloads compatible with the PabloM S10s can be quickly replaced and installed to serve diverse missions.
-
Low-Cost and Mass Production ReadyConstructed using foam board material that is easy to source and handle, PabloM S10s is designed for simple assembly and rapid large-scale production.
-
Self-powered takeoff from launchersThe PabloM S10s does not require pneumatic launchers or canister-based systems.
It is capable of taking off directly from vehicle-mounted or ground-based platforms. -
Steep terminal attackThe PabloM S10s executes high-angle dive attacks (>45°) from altitude, enabling effective engagement of concealed targets in complex mountainous environments.
Product View
K-MOSA
Equipping Modular Mission Equipment
-

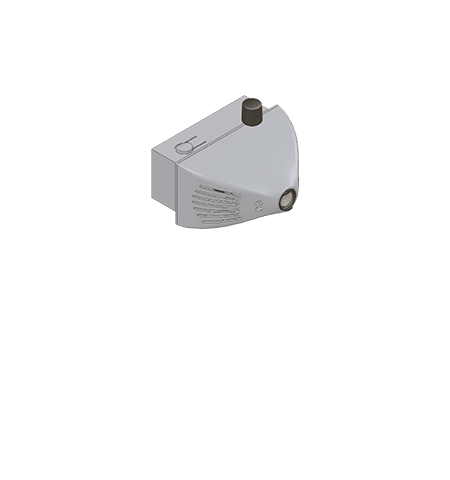

FPV ModuleBasic + Visual-based
manual/automatic guidance -

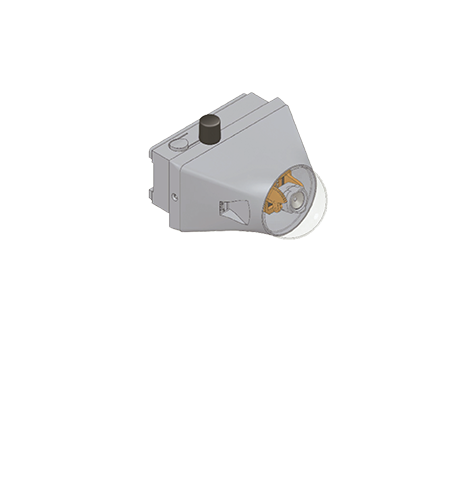

Gimbal FPV ModuleBasic + Gimbal visual-based
manual/automatic guidance -
Night Vision ModuleBasic + Night visual-based
manual/automatic guidance -

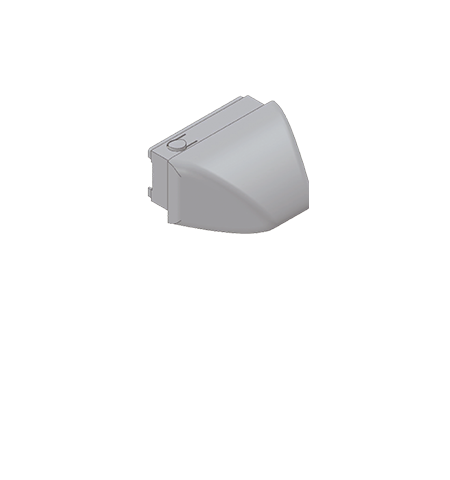

Basic ModuleGNSS Terminal Guidance
Introducing the next-generation of
PABLO AIR's defense drone — the S20s
PabloM

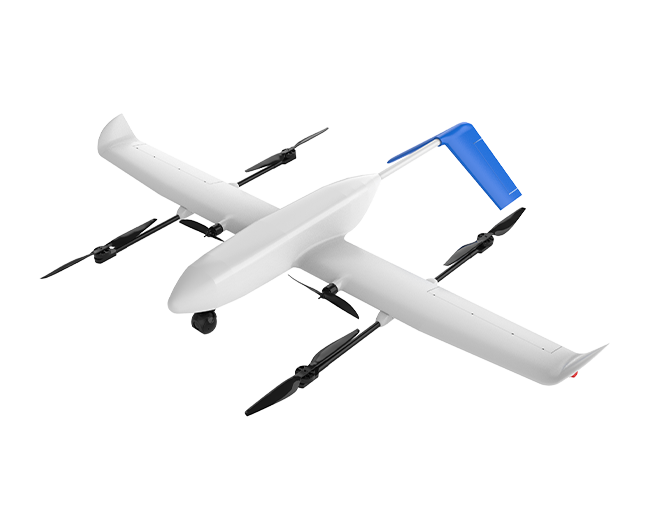

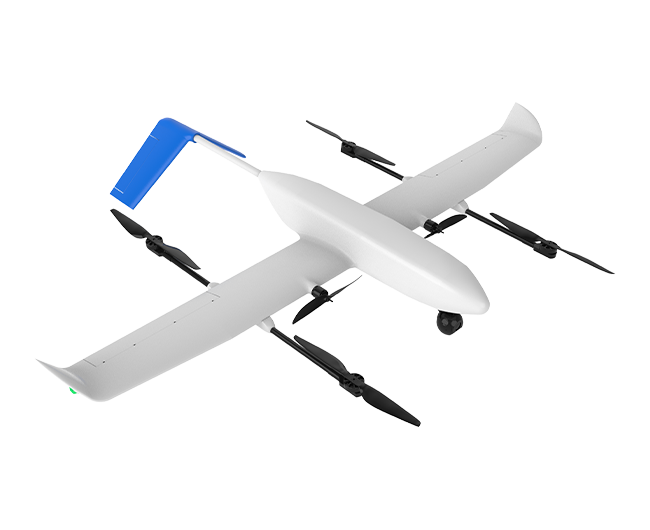

PabloM S20s
An upgraded loitering munition platform that enhances mission scalability
and tactical flexibility through runway-independent VTOL capability,
increased payload capacity, and extended flight endurance.
Product Features
S20s Features
Point 01

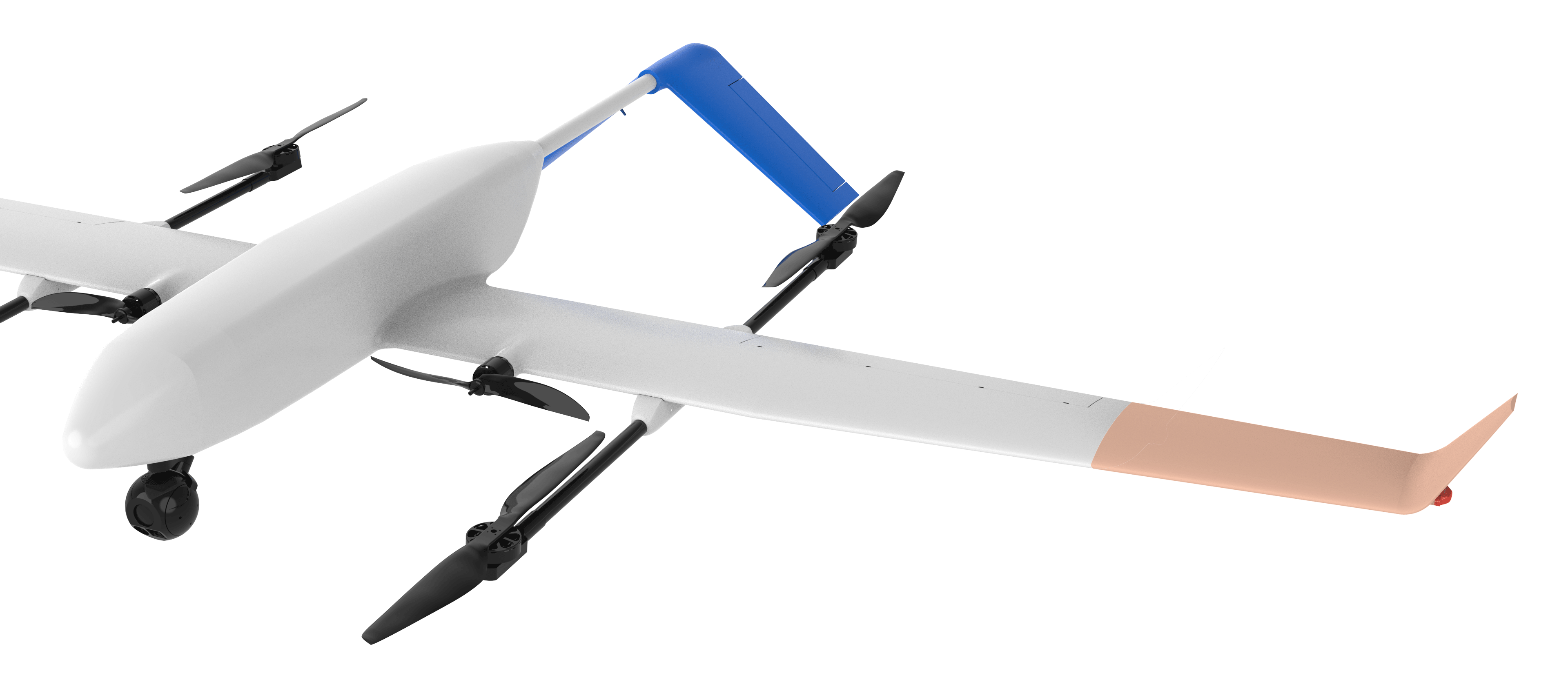

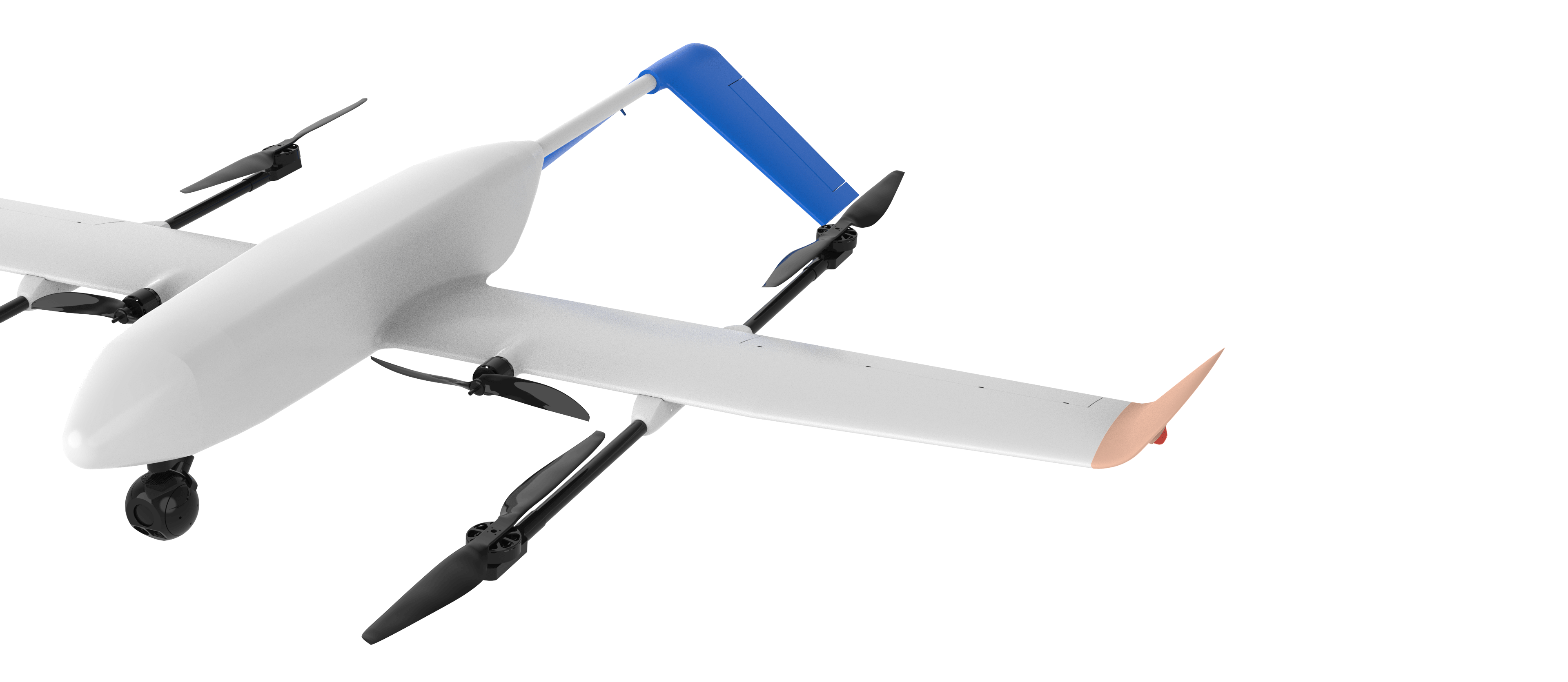

Modular main wing architecture, allowing flexible and rapid transition
(S20s R20s)
* Optional purchase of interchangeable modular main wing
Point 02
Supports payloads up to 5 kg
Point 03
Extended flight time of
over 80 minutes
Point 04
Vertical takeoff and landing
with no runway requirements
Compare Products
Compare Products

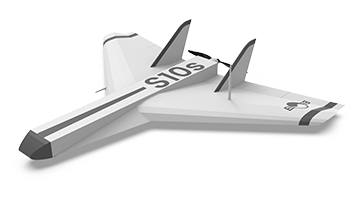

S10s

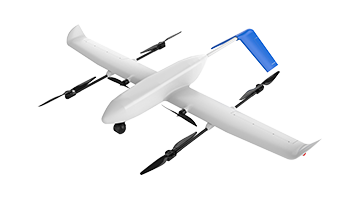

S20s
| Specification | S10s | S20s |
|---|---|---|
| MTOW | 4.2kg | 32kg |
| Empty Weight | 2.7kg (with Battery) | 27kg(with Battery) |
| Flight Time | Over 40min | Over 80min |
| Max Payload | 1.5kg | 5kg |
| Max Speed | 42m/s (150km/h) | 42m/s (150km/h) |
| Payload | Warhead + Nose Modules | Warhead + EO/IR |
| Flight Range | Over 40km | 110km |
| Dimension (W*D*H) | 1,300*1,032*225mm | 3,300*2,400*440mm |
| Production lead-time/1EA | Depends on quantity | |
